APPLICATION

Industry Applications

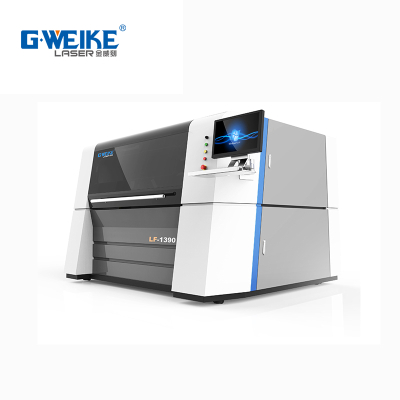

LF1390 laser cutting machine  is specially designed for high precision cutting. It is widely used in machinery, microelectronics, glasses, electronics and other industries, which has high requirements on the cutting accuracy. Professional for cutting various of thin metal sheet, stainless steel plate, galvanized sheet, electrolytic plate and other metal materials.

Transmission and Precision

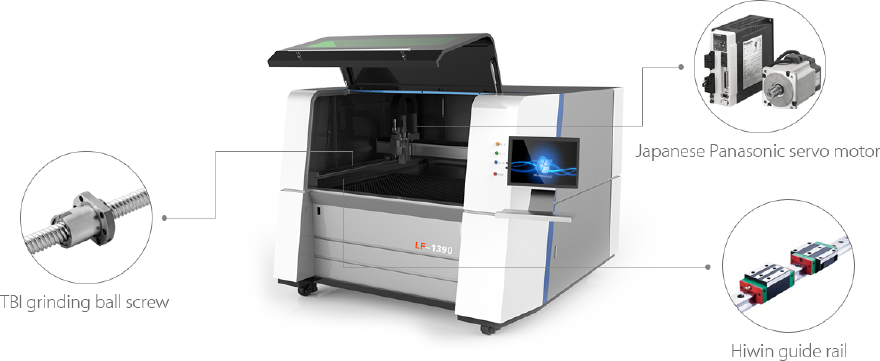

G.WEIKE fiber laser cutting machine is equipped with Japanese Panasonic servo motor, imported TBI dual driver grinding ball screw for Y axis, imported TBI grinding ball screw for X axis and Hiwin guide rail, the positioning accuracy of the machine tool can be 0.008mm and the cutting acceleration is 0.5G. The working life is more than 10 years.

Dual Rail and Dual Driver Design

To prevent the cutting line deformation caused by the Y-axis screw bending, the Y-axis on both sides have been equipped two rails guide and double ball drive screw design to ensure the straightness and arc degree when with high-speed cutting is in operation.ual Rail and Dual Driver Design

SPECIATION

Laser source: IPG or Raycus fiber laser source

Fiber laser power : 500W, 750W, 1000W, 1500W, 2000W, 3000W (Optional)

Working size : 3000*1500mm

X and Y positioning accuracy : -0.02mm

Transmission mode : import Germany Atlanta high precision gear and rack with double driving rack fiber laser cutting machine

Power consumption of whole machine : < 15KW (< 12KW-1 KW)

Rated voltage and frequency : 380V/50Hz/60Hz/60A

CONFIGURATON

1.Germany Precitec / Swiss Raytool laser head, automatic focus height follower optional.

2.GERMANY IPG fiber laser generator, 500W, 750W, 1KW, 2KW, 3KW, 4KW, 6KW, 8KW Optional

3.Japan Yaskawa servo motor system.

4.Taiwan HIWIN linear guide rail.

5.Cypcut controlling system.

6.BEST Germany Atlanta double driver rack gear.
