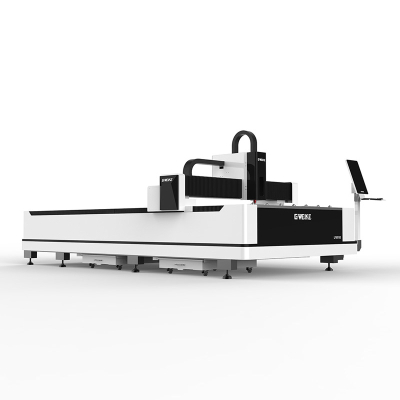

factory directly supply CO2  fiber laser cutting machine

3rd Generation Aviation Aluminum Gantry

It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

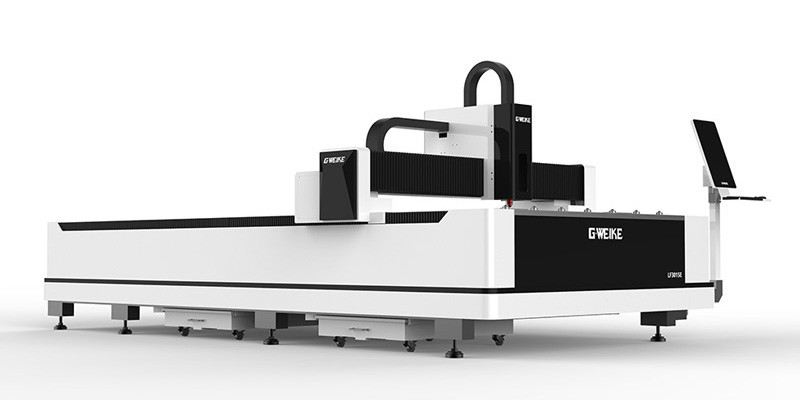

factory directly supply CO2  fiber laser cutting machine

Stainless Steel Protection Design

The operating area adopts a 304 stainless steel design to prevent high temperature cutting sparks from damaging the machine's surface.

Transmission and Precision

G·WEIKE fiber laser cutting machine is equipped with Delta servo motor, Nidec-Shimpo reducer and Taiwan APEX rack. The positioning accuracy of the machine tool can be 0.02mm. The working life is more than 10 years.

Without manual operation, it can focus automatically

• Without manual focusing

  The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting.

• Bigger adjustment range

  Adjustment range -10 mm~ 10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.

• Long service life

  Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head.

• Industry Applications

LF3015E fiber laser cutting machine is good at processing on common metal items in daily life such as advertising metal letter, kitchenware, environmental protection equipment. Laser cutting machines are widely used in electronics, electrical, mechanical hardware, new energy lithium, packaging, solar, LED, automotive and other industries.
Stainless steel, carbon steel, alloy steel, copper, brass, silicon steel, galvanized steel sheet, nickel titanium alloy, inconel, titanium alloy, etc.
