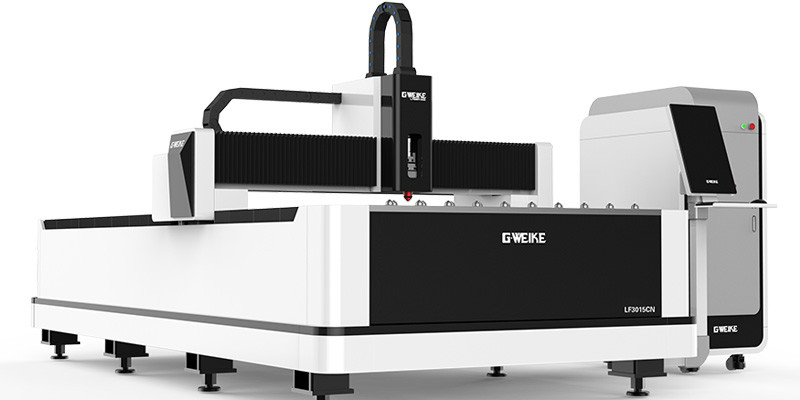

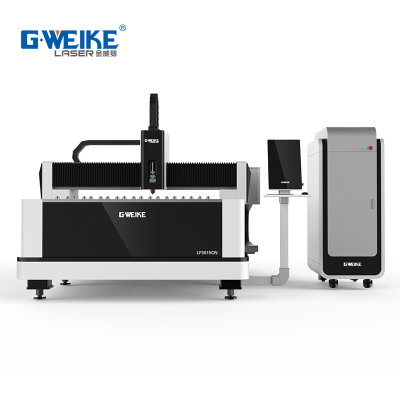

classic model German Tech Quality 1000w-8000w fiber laser cutting machine for metal

German Tech Quality

G·WEIKE fiber laser cutting machine is equipped with German Atlanta rack, Japanese Yaskawa motor and German Neugart reducer. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G. The working life is up to 10 years.

classic model German Tech Quality 1000w-8000w fiber laser cutting machine for metal

Without manual operation, it can focus automatically

• Without manual focusing

  The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting.

• Bigger adjustment range

  Adjustment range -10 mm~ 10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.

• Long service life

  Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head.

• classic model German Tech Quality 1000w-8000w fiber laser cutting machine for metal


The Segmented Rectangular Tube Welded Bed

The internal structure of the bed adopts the aircraft metal honeycomb structure, which is welded by a number of rectangular tubes. Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide rail so as to effectively avoid the deformation of the bed.

•   High strength, stability, tensile strength, ensuring 20 years of use without distortion;

•   Thickness of rectangular pipe wall is 10mm,and weights 4500 kg.

• 3rd Generation Aviation Aluminum Gantry

• It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

• classic model German Tech Quality 1000w-8000w fiber laser cutting machine for metal


•
