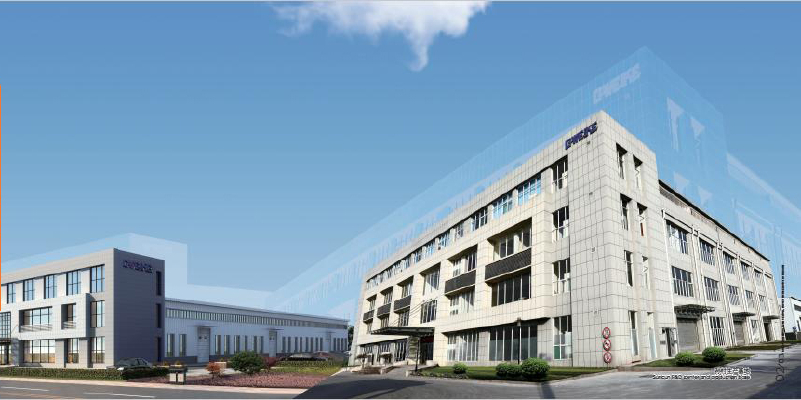

15 YEARS PROFESSIONAL FOCUSED ON LASER CUTTING MACHINE  is established in July 2004 , owns more than 500 square meters of researching and office space, more than 32000 square meters factory.All machines passed the European Union CE authentication，American FDA certificate and are certified to ISO 9001. Products are sold to USA, Canada, Australia, Europe, South east Asia, Africa etc, more than 150 countries and areas, and supply OEM service for more than 30 manufactures.

Industry Applications

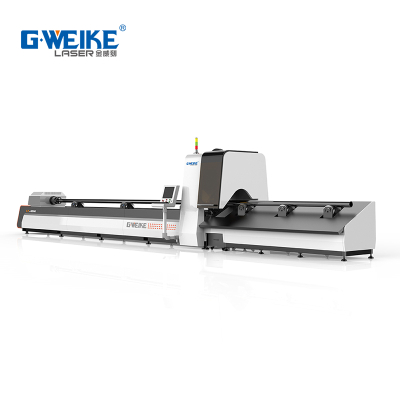

Take the oil industry for example, the main route of oil transport is the pipeline, and because of the characteristics of the oil itself, leading to the high quality requirements of the pipeline. While fiber laser cutting machine can achieve the pipes multi-angle precision processing to fulfil the oil transportation requirement.  Professional tube fiber laser cutting machine—LF60M is used for cutting square tube, rectangular tube, oval tube, waist type tube, hexagonal tube; square tube □ 20 * 20- □150 *150mm, round tube Φ20-Φ 210mm wall thickness of 0.5-10mm carbon steel tube, 0.5-10mm stainless steel tube.

Clamp Design

It adopts an electric clamp design on both sides and it can modulate the center automatically. The diagonal adjustable range is 20-200mm.

1.Plate and tube fiber laser cutting combination,one machine dual use;

2.Germany Atlanta Double Gear and Rack fiber laser cutting machine transmission system, high cutting efficiency;

3.Auto clap,fast speed,save strength,no harm to working piece;

4.Precision rotary,rotate angle precious,cutting in coherence;

5.Small focus dot,small cutting gap,save materials;

6.No dregs,cutting edge smooth as silk,no need second processing,save strength.

1. 300w, 500w, 750w, 1000w, 2000w 3000w IPG RAYCUS fiber optic laser optional

2. Fiber Cutting aluminum, carbon steel, iron, stainless steel, silver, hardware, sheet metal processing, metal tube pipe materials etc

3. China Top manufactuers, Jinan G.Weike, best price and quality, with CE & FDA & ISO certificates

4. Fiber Cutting thickness 1mm, 1.5mm, 2mm, 3mm, 5mm, 6mm, up to 20mm

5. LF3015CR Tube pipe fiber laser cutting machine, 1500*3000mm

6. Price for 1000W Stainless steel silver metal tube pipe CNC fiber laser cutting machine

Model: LF3015CR 1000W Stainless steel silver metal tube pipe CNC fiber laser cutting machine

SPECIATION

Laser source: IPG or Raycus fiber laser source

Fiber laser power : 500W, 750W, 1000W, 1500W, 2000W, 3000W (Optional)

Working size : 3000*1500mm

X and Y positioning accuracy : -0.02mm

Transmission mode : import Germany Atlanta high precision gear and rack with double driving rack fiber laser cutting machine

Power consumption of whole machine : < 15KW (< 12KW-1 KW)

Rated voltage and frequency : 380V/50Hz/60Hz/60A

CONFIGURATON

1.Germany Precitec / Swiss Raytool laser head, automatic focus height follower optional.

2.GERMANY IPG fiber laser generator, 500W, 750W, 1KW, 2KW, 3KW, 4KW, 6KW, 8KW Optional

3.Japan Yaskawa servo motor system.

4.Taiwan HIWIN linear guide rail.

5.Cypcut controlling system.

6.BEST Germany Atlanta double driver rack gear.
