APPLICATION

LF3015CR 1000W Stainless steel silver metal tube pipe CNC fiber laser cutting machine: Suitable for stainless steel, carbon steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel, pickle plate, aluminum-plating Zinc plate, metallic copper and other metals.

Industry Applications

Since sheet and pipe integrated design, Industry adaptability of LF3015CR has been greatly enhanced, including petroleum and pipe material, fitness equipment and other pipe material mainly mechanical processing, automotive manufacturing, machine cabinet and other board materials mainly mechanical processing, etc. Specially used for cutting 0.5-5mm carbon steel sheets (pipes), 0.5-2.5mm stainless steel sheets, galvanized steel(pipes), electrolytic zinc-coated steel sheet(pipes), silicon steel(pipes) and other kinds of thin metal sheets and pipes. Range of pipe diameters: 20-220mm.

Dual Use and Cost-saving

LF3015CR fiber laser cutting machine can not only cut metal plates, but also metal pipes. It has many uses and can save the space of more than 50%, which effectively improve productivity.

In order to meet the increasingly complex needs of consumers, Gweike is targeted at market demand, independently developed LF3015CR sheet and pipe integrated laser fiber cutting machine, one machine dual purpose, this machine solves double cutting needs by one time.

1.Plate and tube fiber laser cutting combination,one machine dual use;

2.Germany Atlanta Double Gear and Rack fiber laser cutting machine transmission system, high cutting efficiency;

3.Auto clap,fast speed,save strength,no harm to working piece;

4.Precision rotary,rotate angle precious,cutting in coherence;

5.Small focus dot,small cutting gap,save materials;

6.No dregs,cutting edge smooth as silk,no need second processing,save strength.

1. 300w, 500w, 750w, 1000w, 2000w 3000w IPG RAYCUS fiber optic laser optional

2. Fiber Cutting aluminum, carbon steel, iron, stainless steel, silver, hardware, sheet metal processing, metal tube pipe materials etc

3. China Top manufactuers, Jinan G.Weike, best price and quality, with CE & FDA & ISO certificates

4. Fiber Cutting thickness 1mm, 1.5mm, 2mm, 3mm, 5mm, 6mm, up to 20mm

5. LF3015CR Tube pipe fiber laser cutting machine, 1500*3000mm

6. Price for 1000W Stainless steel silver metal tube pipe CNC fiber laser cutting machine

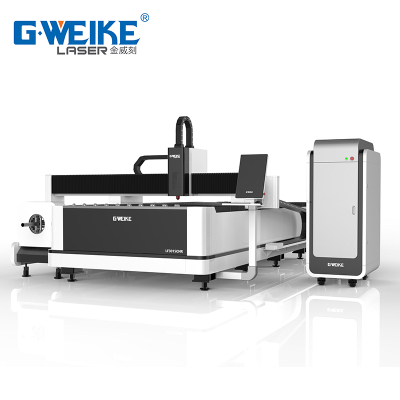

Model: LF3015CR 1000W Stainless steel silver metal tube pipe CNC fiber laser cutting machine

SPECIATION

Laser source: IPG or Raycus fiber laser source

Fiber laser power : 500W, 750W, 1000W, 1500W, 2000W, 3000W (Optional)

Working size : 3000*1500mm

X and Y positioning accuracy : -0.02mm

Transmission mode : import Germany Atlanta high precision gear and rack with double driving rack fiber laser cutting machine

Power consumption of whole machine : < 15KW (< 12KW-1 KW)

Rated voltage and frequency : 380V/50Hz/60Hz/60A

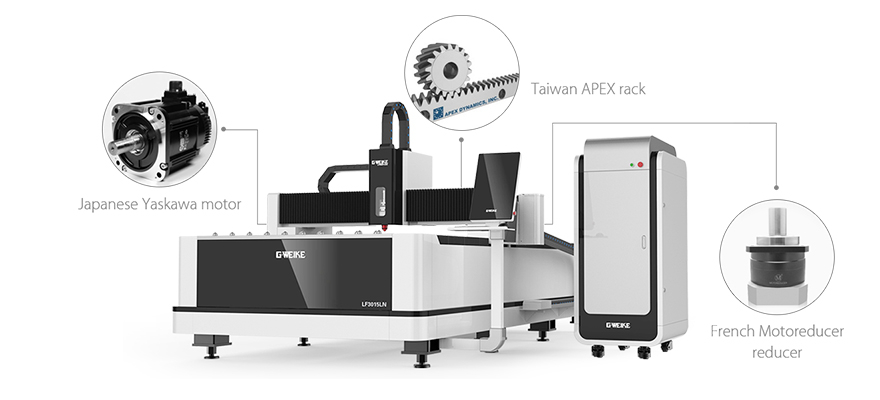

CONFIGURATON

1.Germany Precitec / Swiss Raytool laser head, automatic focus height follower optional.

2.GERMANY IPG fiber laser generator, 500W, 750W, 1KW, 2KW, 3KW, 4KW, 6KW, 8KW Optional

3.Japan Yaskawa servo motor system.

4.Taiwan HIWIN linear guide rail.

5.Cypcut controlling system.

6.BEST Germany Atlanta double driver rack gear.
