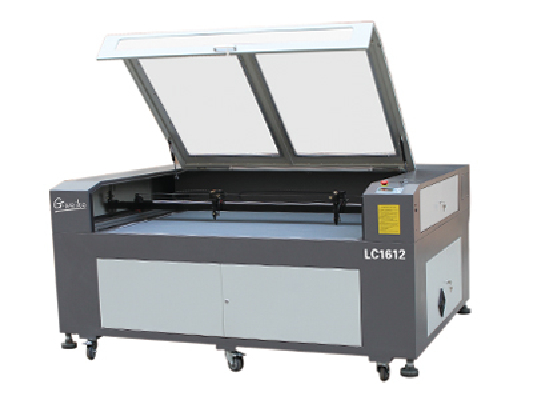

LC1612 Dual head laser cutting machine
Products
Adopt dual laser heads, with the standard honeycomb, it is equal to two machines, which greatly improving the processing efficiency,especially for cutting of fabrics and flexible materials.
Specification
Laser- type:Sealed CO2 laser tube
Laser power: 80W,100W,130W,150W,200W (GSI) (optional)
cutting area:single head 800×600mm
Whole machine size: 2,120×1,810×1,070mm
Cutting speed: 0 -24,000mm/min
Resetting positioning accuracy: ±0.05mm
Working voltage: AC 110 - 220V±10%, 50 - 60Hz
Gross power: <2,000W
Operating temperature: 0 - 45℃
Operating humidity: 5- 95%
Graphic format supported: BMP,PLT, DST, DXF, and AI
Driving system:stepper
Cooling mode: water-cooling and protection system
Auxiliary equipments :Exhaust-fans, air-exhaust pipe
Controlling software : DSP control system.
Compatible software: CorelDraw AutoCAD Photoshop
Net Weight : 450kg
