- Size: 1600*2303*1227
- Place of Origin: jinan
- Brand Name: GWEIKE
- Model Number: LC1390SA
- Weight: 400.000 kg

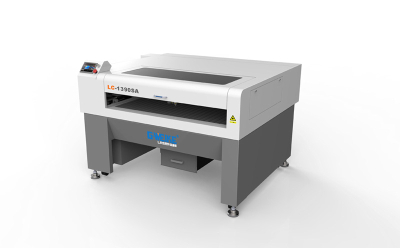

LC1390SA special laser cutting machine for Acrylic
product presentation
1、Use imported high precision ball screw drive
2、Use imported servo drive motor with S&A CW-5000 chiller to protect laser machine work.
3、Independent research and development has monitoring function of laser power supply to protect laser power stabilization
4、Domestic or imported laser source (Optional)
Product parameters
Laser Power:130W(Domestic or imported laser source)
Working Area:900x1300mm
Positioning Accuracy:±0.05mm
Positioning Speed:20mm/min
Whole size:1600*2303*1227
Electricity demand:220V±10%/10A
Whole weight:400kg

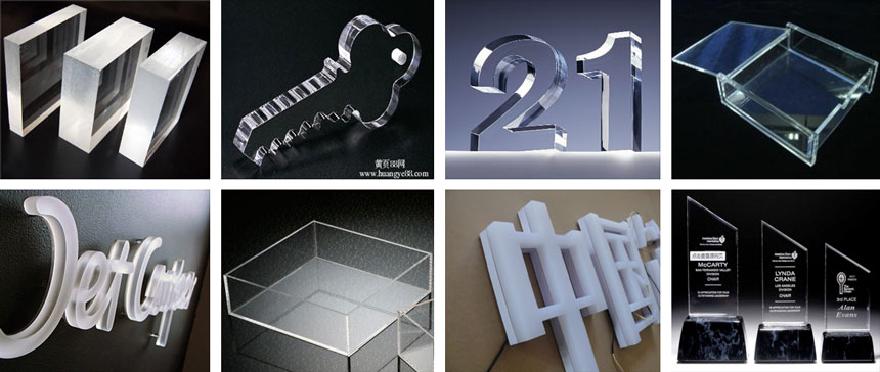

Applicable materials
Acrylic、MDF、Wood、Perspex、Plastic、Clothes、Paper、Leather、Rubber and other non metal material
Application industry
Advertising, crafts, shoes, toys, computer embroidery cutting, garment industry, model, construction industry
- Size: 1600*2303*1227
- Place of Origin: jinan
- Brand Name: GWEIKE
- Model Number: LC1390SA
- Weight: 400.000 kg
cutting capability
Thickness | mm/min |
10mm Acrylic | 300mm/min |
20mm Acrylic | 60mm/min |
30mm Acrylic | 30mm/min |
9mmMDF | 280mm/min |
LC1390SA compared with the ordinary belt machine
Advantage | LC1390SA | Ordinary belt machine |
Higher accuracy | Import servo motor ball screw, ensure the consistency of batch processing products. | Stepper motor belt。It could not ensure products have same size when batchprocessing. |
Betterstability | Professional constant temperature water cooling machine,Temperature control precision±1℃ | Usually water tank water pump(No refrigeration function) |
Independent research and development has a monitoring, directed, protective function of highvoltage power supply | Ordinary high voltage power supply,don’t have monitoring and protection function。 | |
Run more smoothly | Design of X/Y axis drive to control geometry | Design of drive both ends of the belt pulley through the middle belt pulley,Belt tightness can not be consistent |
Cutting thicker, more smooth for cutting | The max thickness could cut 30mm Acrylic. cutting surface smooth and bright。 | It only could cut part of 20mm acrylic in a short time, it doesn’t have smooth and bright cutting surface |
