- Place of Origin: jinan
- Brand Name: GWEIKE
- Model Number: LC1325M
- Weight: 1000.000 kg

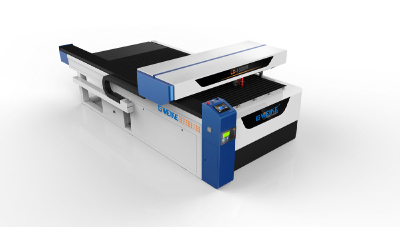

LC1325M Laser Cutting Machine
ProductsLC1325M is a mixing cutting machine,specialied in cutting stainless steel,carbon steel,MDF and acrylic.
High efficiency.1mm stainless steel and 1 mm carbon steel,speed can attain 1800mm/min.
20mm acrylic with perfect cutting quality.
Main features
Laser tube :Reci 150w(GSI200w,280w optional)
High prcision ball screw system
Panasonic servo system
Metal cutting following system
Fixed beam optical system
Industrial chiller
off-computer controlling system
Application
Laser power | 150w | |||
Material | Acrylic | MDF | Stainless steel | Carbon steel |
Cutting thickness | 20mm | 10mm | 1.5mm | 1.5mm |
Technology Parameter
Model | LC1325M |
Laser power | 150w(GSI200w,280w optional) |
Working area | 1300*2500mm |
Position accuracy | ±0.05mm |
Position speed | 20m/min |
Weight | 1000kg |
Power supply | 220V±10%/10A |
Cutting speed
Material | Cutting thickness | Cutting speed (mm/min) |
Stainless steel | 0.5mm | 2700 |
1mm | 1800 | |
1.5mm | 1000-1200 | |
Carbon steel | 0.5mm | 3000 |
1mm | 1800 | |
1.5mm | 100-1200 | |
Acrylic | 10mm | 300 |
20mm | 90-120 | |
MDF | 10mm | 300-400 |
