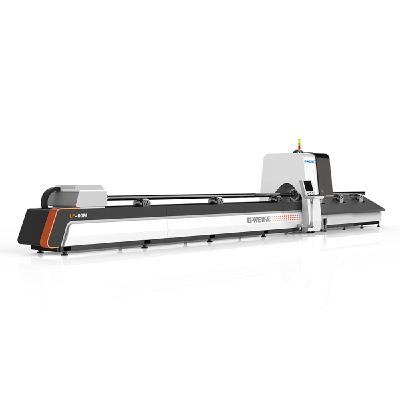

High Quality Auto Clamp Metal Tube Fiber Laser Cutting Machine
Production Description:
Clamp Design
It adopts an electric clamp design on both sides and it can modulate the center automatically. The diagonal adjustable range is 20-200mm.
Easy to Operate
It employs a wireless controller, with free control clamp pressure for easy control and operation, which can reduce pipe deformation.
Fractional Automatic Support Installation
It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting.
Technical Parameters
| Machine model | LF60M |
| Laser power | 500W 750W 1000W 2000W 3000W 4000W 6000W 8000W(Optional) |
| Dimensions | 11900*1580*2260mm |
| Machining range | Hold diameter: Φ20mm-Φ220mm |
| Repeat positioning accuracy | ±0.02mm/m |
| Specified voltage and frequency | 380V/50Hz/60Hz |
Industry Applications
Take the oil industry for example, the main route of oil transport is the pipeline, and because of the characteristics of the oil itself, leading to the high quality requirements of the pipeline. While fiber laser cutting machine can achieve the pipes multi-angle precision processing to fulfil the oil transportation requirement.
Professional tube fiber laser cutting machine—LF60M is used for cutting square tube, rectangular tube, oval tube, waist type tube, hexagonal tube; square tube 20 * 20- 150 *150mm, round tube Φ20-Φ 210mm wall thickness of 0.5-10mm carbon steel tube, 0.5-10mm stainless steel tube.
Company
G.WEIKE is established in July 2004 , owns more than 500 square meters of researching and office space, more than 32000 square meters factory.All machines passed the European Union CE authentication，American FDA certificate and are certified to ISO 9001. Products are sold to USA, Canada, Australia, Europe, South east Asia, Africa etc, more than 150 countries and areas, and supply OEM service for more than 30 manufactures.
CONTACT INFO
WeChat: D17615871071
Tel/WhatsApp/Skype: 86 17615871071
E-mail: iris@wklaser.com
Address: C-504, Silver Lotus Building, High-Tech Zone Jinan Shandong China
Postcode:250101
