- Place of Origin: Shandong
- Brand Name: GWEIKE
- Model Number: LF1390
- :
- :
- :
- :
- :
- :
- :
- :
- :

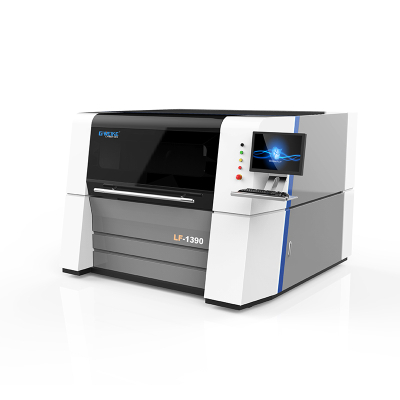

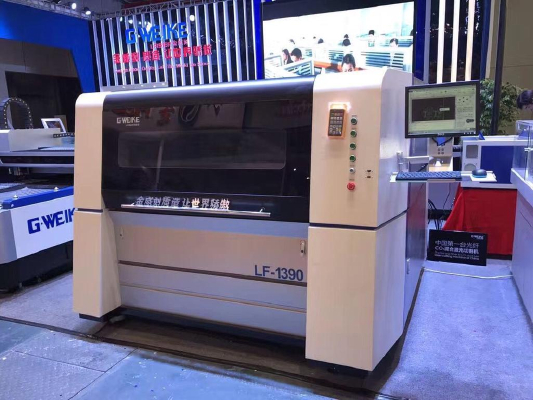

High Precision Dual Rail Dual Driver 500W 750W Fiber Laser Cutting Machine
Production Description
Safety and No Pollution
With a fully enclosed design.
The observation window adopts an European CE standard laser protective glass.
The smoke produced by cutting can be filtrated inside, it's non-polluting and environmentally friendly.
Dual Rail and Dual Driver Design
To prevent the cutting line deformation caused by the Y-axis screw bending, the Y-axis on both sides have
been equipped two rails guide and double ball drive screw design to ensure the straightness and arc degree
when with high-speed cutting is in operation.
Worthing Laser Head Which can Focus Automatically
Without manual focusing
The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of
different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting.
Bigger adjustment range
Adjustment range -10 mm~ 10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.
Long service life
Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the
cutting head to improve the life of the cutting head.
Transmission and Precision
G.WEIKE fiber laser cutting machine is equipped with Japanese Panasonic servo motor, imported TBI dual
driver grinding ball screw for Y axis, imported TBI grinding ball screw for X axis and Hiwin guide rail, the
positioning accuracy of the machine tool can be 0.008mm and the cutting acceleration is 0.5G. The working
life is more than 10 years.
Our Company
GWEIKE is established in July 2004 , owns more than 500 square meters of researching and office space,
more than 32000 square meters factory.All machines passed the European Union CE authentication,
American FDA certificate and are certified to ISO 9001. Products are sold to USA, Canada, Australia, Europe,
South east Asia, Africa etc, more than 150 countries and areas, and supply OEM service for more than 30
manufactures.
Our Service
Warranty and service
Three years warranty for machine. English technical to door service.
English manual and Video CD for machine using and maintenance.We offer free training in our factory,
welcome to visit and learn more about our machines.
Free accessories :Software ,manual, book, cd videos, USBcontrol
1.Pre-sales service
A. Free sample making
For free sample making/testing, please send your samples or products CAD Graphics to our company in China. Try before
you buy.
B. Progressing Solution Design
According to customer’s product processing requirement, we can design the unique solution that supports higher
manufacturing efficiency and better processing quality for customer.
2.After-sales service:
Training to install(3options):
A. We will supply the machine with training video and user's manual in English for installing, operation, maintenance and
trouble-shooting, and shall give technical guide by e-mail, fax, telephone/MSN/ICQ and so on, when you meet some
problems of installation, using or adjusting.
B. You can come to our factory for training. Gweike will offer professional guide. Direct and effective face-to-face training.
Here we have assembled equipments, all sorts of tools and testing facility,we will also provide accomadation during training
period. Training Time: 1-10 working days.
Contact
CONTACT INFO
WeChat: D17615871071
Tel/WhatsApp/Skype: 86 17615871071
E-mail: iris@wklaser.com
Address: C-504, Silver Lotus Building, High-Tech Zone Jinan Shandong China
Postcode:250101
- Place of Origin: Shandong
- Brand Name: GWEIKE
- Model Number: LF1390
- :
- :
- :
- :
- :
- :
- :
- :
- :
Technical Parameters
Machine model | LF1390 |
Laser power | 500W 750W 1000W(Optional) |
Working area | 1300mmx900mm |
Repeat positioning accuracy | ±0.008mm |
Maximum speed | 40m/min |
Maximum acceleration | 0.5G |
Transmission mode | Grinding precision screw drive |
Specified voltage and frequency | 220V/50Hz/60Hz/60A |
