Overview

Quick Details

• Application:

• Laser Cutting

• Condition:

• New

• Laser Type:

• Fiber Laser

• Applicable Material:

• Metal, pipe metal laser cutting machine

• Cutting Thickness:

• Materials

• Cutting Area:

• 3000mm*1500mm

• Cutting Speed:

• 0-40000mm/min

• CNC or Not:

• Yes

• Cooling Mode:

• Water Cooling

• Control Software:

• Cypcut

• Graphic Format Supported:

• AI, BMP, DST, DWG, DXF, DXP, LAS, PLT, pipe metal laser cutting machine

• Brand Name:

• G.WEIKE

• Model Number:

• LF3015CR

• Certification:

• CE, ISO, pipe metal laser cutting machine

• After-sales Service Provided:

• Overseas service center available

• Product name:

• G.WEIKE LF3015CR FIBER LASER CUTTING MACHINE

• Laser power:

• 500W / 1000W / 2000W / 3000W

• Keyword:

• Fiber Laser Cutting Machiens

• Function:

• Cutting Metal Materials

• Model:

• LF3015CR

• Color:

• Required

• Working area:

• 3000mmX1500mm

• Name:

• Automatic CNC Laser Cutting Machine

• Type:

• Fiber Lasr Cutting

Packaging & Delivery

• Packaging Details

• wooden packing

• Delivery Time

• 50days

Hot sell pipe metal laser cutting machine with 1000w fiber laser source

Hot sell pipe metal laser cutting machine with 1000w fiber laser source:

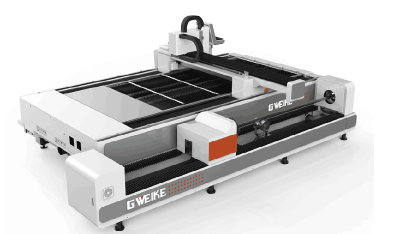

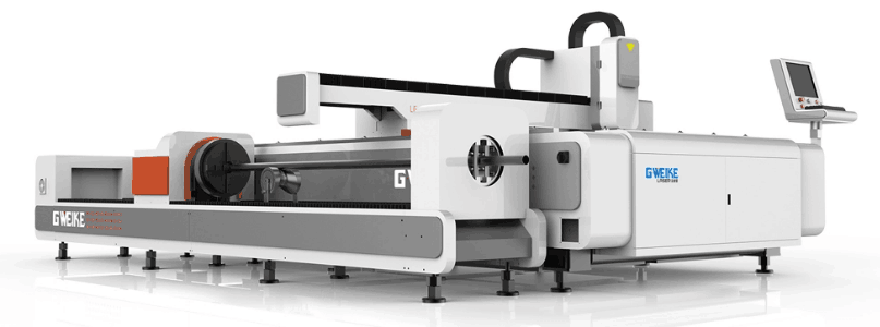

In order to meet the increasingly complex needs of consumers, Gweike is targeted at market demand, independently developed LF3015CR sheet and pipe integrated laser fiber cutting machine, one machine dual purpose, this machine solves double cutting needs by one time.

Hot sell pipe metal laser cutting machine with 1000w fiber laser source:

1. 300w, 500w, 750w, 1000w, 2000w 3000w IPG RAYCUS fiber optic laser optional

2. Fiber Cutting aluminum, carbon steel, iron, stainless steel, silver, hardware, sheet metal processing, metal tube pipe materials etc

3. China Top manufactuers, Jinan G.Weike, best price and quality, with CE & FDA & ISO certificates

4. Fiber Cutting thickness 1mm, 1.5mm, 2mm, 3mm, 5mm, 6mm, up to 20mm

5. LF3015CR Tube pipe fiber laser cutting machine, 1500*3000mm

6. Price for 1000W Stainless steel silver metal tube pipe CNC fiber laser cutting machine

Hot sell pipe metal laser cutting machine with 1000w fiber laser source Technical parameters

Model: LF3015CR 1000W Stainless steel silver metal tube pipe CNC fiber laser cutting machine

Laser source: IPG or Raycus fiber laser source

Fiber laser power : 500W, 750W, 1000W, 1500W, 2000W, 3000W (Optional)

Working size : 3000*1500mm

X and Y positioning accuracy : -0.02mm

Transmission mode : import Germany Atlanta high precision gear and rack with double driving rack fiber laser cutting machine

Power consumption of whole machine : < 15KW (< 12KW-1 KW)

Rated voltage and frequency : 380V/50Hz/60Hz/60A

Hot sell pipe metal laser cutting machine with 1000w fiber laser source Confugiration

1.Germany Precitec / Swiss Raytool laser head, automatic focus height follower optional.

2.GERMANY IPG fiber laser generator, 500W, 750W, 1KW, 2KW, 3KW, 4KW, 6KW, 8KW Optional

3.Japan Yaskawa servo motor system.

4.Taiwan HIWIN linear guide rail.

5.Cypcut controlling system.

6.BEST Germany Atlanta double driver rack gear.

7.Germany Neugart reducer. is using below:

inan G.WEIKE SCIENCE Hot sell pipe metal laser cutting machine with 1000w fiber laser source detail configuration as above

 This Stainless steel silver metal tube pipe CNC fiber laser cutting machine has high speed and efficiency.

1.Plate and tube fiber laser cutting combination,one machine dual use;

2.Germany Atlanta Double Gear and Rack fiber laser cutting machine transmission system, high cutting efficiency;

3.Auto clap,fast speed,save strength,no harm to working piece;

4.Precision rotary,rotate angle precious,cutting in coherence;

5.Small focus dot,small cutting gap,save materials;

6.No dregs,cutting edge smooth as silk,no need second processing,save strength.

 Our company:

Jinan G.Weike Science & Technology Co., Ltd is established in July 2004. It is a modern enterprise in combination of researching, producing and selling on Optics,

Mechanics and Electronics. China supplier manufacture  heat treatment Coconut Shells Fiber Laser Cutting Machine with Competitive Price,

Our company is one of the biggest manufactures for small and medium laser equipments, recently the company owns 150 employees, more than 500 square meters

of researching and office space, more than 26000 square meters of manufacturing space. The total sales quality is more than 10000 sets since the company established

 and along with the production scale expanding, the annual sales quality has achieved more than 3000 sets now. Our products are sold to USA, Canada, Australia, Europe,

South east Asia, Africa etc. more than 80 countries and areas, and supply OEM service for more than 10 manufactures.

 G.weike moved to new factory in 2015, it can hold about 100 sets fiber laser cutting machine and 600 sets co2 laser cutting machine in stock now. At present,

gweike owns 2 factories and one office in Jinan city, besides have several branch companies in many cities domestic.
