Factory Price 0640 High Precision Metal Fiber Laser Cutting Machine

Factory Price 0640 High Precision Metal Fiber Laser Cutting Machine

  • FOB Price:US $37,000 -58,000 / Set (Only for reference) | Get Latest Price
  • Min.Order Quantity: 1 Set
  • Supply Ability: 100 Sets per Month
  • Port: Qingdao
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Other
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2014-07-01
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  Shandong
  • Brand Name:  GWEIKE
  • Model Number:  LF0640

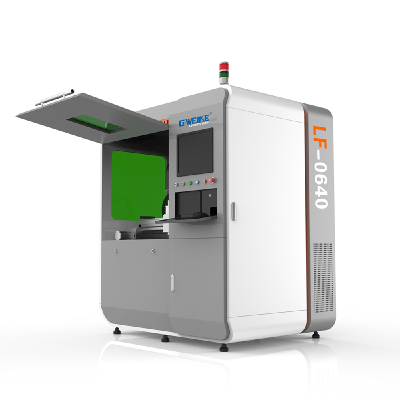

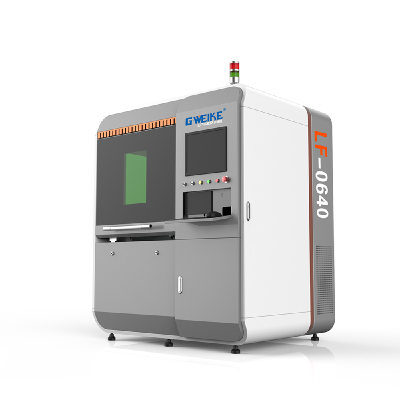

Factory Price 0640 High Precision Metal Fiber Laser Cutting Machine





 Production Description

  • Safety and No Pollution

  1. With a fully enclosed design.

  2. The observation window adopts an European CE standard laser protective glass.

  3. The smoke produced by cutting can be filtrated inside, it's non-polluting and environmentally friendly.



  • Dual Rail and Dual Driver Design

      To prevent the cutting line deformation caused by the Y-axis screw bending, the Y-axis on both sides have

   been equipped two rails guide and double ball drive screw design to ensure the straightness and arc degree

   when with high-speed cutting is in operation.

  • Worthing Laser Head Which can Focus Automatically

  1. Without manual focusing

    The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of

    different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting.

  2. Bigger adjustment range

    Adjustment range -10 mm~ 10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.

  3. Long service life

       Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the

       cutting head to improve the life of the cutting head.

  • Transmission and Precision

  Factory Price 0640 High Precision Metal Fiber Laser Cutting Machine is equipped with Japanese Panasonic servo

  motor, imported TBI dual driver grinding ball screw for Y axis, imported TBI grinding ball screw for X axis and Hiwin

  guide rail, the positioning accuracy of the machine tool can be 0.008mm and the cutting acceleration is 0.5G. The

  working life is more than 10 years.


Our Company

 GWEIKE is established in July 2004 , owns more than 500 square meters of researching and office space,

more than 32000 square meters factory.All machines passed the European Union CE authentication,

American FDA certificate and are certified to ISO 9001. Products are sold to USA, Canada, Australia, Europe,

 South east Asia, Africa etc, more than 150 countries and areas, and supply OEM service for more than 30

manufactures.

Our Service

Warranty and service

Three years warranty for machine. English technical to door service.

English manual and Video CD for machine using and maintenance.We offer free training in our factory,

welcome to visit and learn more about our machines.

Free accessories  :Software ,manual, book, cd videos, USBcontrol

1.Pre-sales service
A.   Free sample making
For free sample making/testing, please send your samples or products CAD Graphics to our company in China. Try before

you buy.

B.   Progressing Solution Design
According to customer’s product processing requirement, we can design the unique solution that supports higher

 manufacturing efficiency and better processing quality for customer.

2.After-sales service:
Training to install(3options):
A. We will supply the machine with training video and user's manual in English for installing, operation, maintenance and

trouble-shooting, and shall give technical guide by e-mail, fax, telephone/MSN/ICQ and so on, when you meet some

problems of installation, using or adjusting.


B. You can come to our factory for training. Gweike will offer professional guide. Direct and effective face-to-face training.

 Here we have assembled equipments, all sorts of tools and testing facility,we will also provide accomadation during training

period. Training Time: 1-10 working days.


Contact

CONTACT INFO
 WeChat: D17615871071
 Tel/WhatsApp/Skype: 86 17615871071
 E-mail:
iris@wklaser.com
 Address: C-504, Silver Lotus Building, High-Tech Zone Jinan Shandong China
 Postcode:250101





  • Place of Origin:  Shandong
  • Brand Name:  GWEIKE
  • Model Number:  LF0640

Technical Parameters

Machine modelLF0640
Laser power500W 750W 1000W(Optional)
Working area600mmx400mm
Repeat positioning accuracy±0.008mm
Maximum speed40m/min
Maximum acceleration0.5G
Transmission modeGrinding precision screw drive
Specified voltage and frequency220V/50Hz/60Hz/60A
