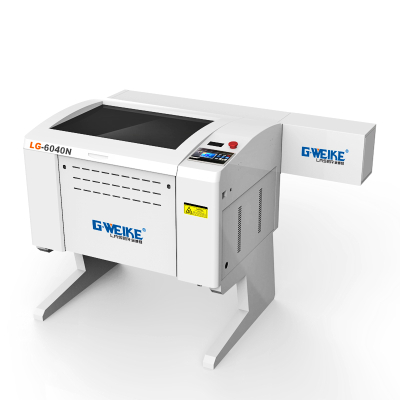

China popular efficient C02 laser engraving machine for nonmetal

China popular efficient C02 laser engraving machine for nonmetal

  • FOB Price:US $1,500 -2,000 / Set (Only for reference) | Get Latest Price
  • Min.Order Quantity: 1 Set
  • Supply Ability: 200 Sets per Month
  • Port: QINGDAO
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2014-07-01
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  China
  • Brand Name:  GWEIKE
  • Model Number:  LG6040N

China popular efficient C02 laser engraving machine for nonmetal

Application Industry

Wood, organic glass, plastic, garments, paper, leather, rubber, and other nonmetal materials.

Electronic lifting

The machine can automatic adjust the working table to satisfy the demands of cutting different thicknesses materials. The lifting height can reach 20cm.

China popular efficient C02 laser engraving machine for nonmetal

Automatic Focusing

Auto focusing makes the laser head focus easily and quickly. Do not need to adjust the focal length by hand, saving much time and has higher accuracy.


Taiwan Hiwin Linear Guide Rail

Adopted Taiwan Hiwin linear guide rail, high positioning accuracy, scroll guide, reduce wear to maintain accuracy for a longer time.

RECI Laser Tube

Higher laser output power density, concentrated light beam, uniformly light spot, high working efficiency, high cutting speed. The laser tube adopts the special manufacturing technique, the laser beam is sharpen after focusing, the mark line is narrow, the scale is deep, the resolution is high, the picture character is clear.


U.S II-VI  Optical Lenses

U.S. optics from American Photonics. Proven 14% beam transmission improvement vs. other optics. High strength gold-plated lenses and aspheric focusing lenses made by II-VI Company, USA.

High focus, high transmittance. The lenses can not only ensure the quality of the machine but also make the optical system run a long time with high efficiency and low cost.

China popular efficient C02 laser engraving machine for nonmetal

Leadshine Stepper Motor

Lower noise, low vibration, running more smoothly, higher torque, higher acceleration, higher precision, better acceleration performance.

Double Platforms

Both knife blade and honeycomb platforms for cutting and engraving.

High Efficiency Air Filters

Environmentally friendly and pollution-free laser can be directly used indoors.

Tertiary filtration

Filter large particles in bags.

HEPA filtration larger than 0.03UM particle.

Activated carbon adsorption system.


  • Place of Origin:  China
  • Brand Name:  GWEIKE
  • Model Number:  LG6040N

Technical Parameters

Laser - TypeSealed CO2 laser tube
Laser Power40W 60W 80W (optional)
Engraving Area600mm x 400mm
WorktableMotorized up down table
Whole Machine Size1360*850*950mm
Engraving Speed0-36,000mm/min
Resetting Positioning Accuracy±0.05mm
Working VoltageAC 110-220V±10%,50-60Hz
Gross Power<1000W
Operating Temperature0-45℃
Operating Humidity5-95%
Minimum Shaping CharacterEnglish 1x1mm
Graphic Format SupportedBMP, PLT, DST, DXP, and AI
Driving Systemstepper
Cooling ModeWater-cooling and protection system
Auxiliary EquipmentsExhaust-fans, air-exhaust pipe
Controlling SoftwareDSP control system
Compatible SoftwareCorelDraw AutoCAD Photoshop
