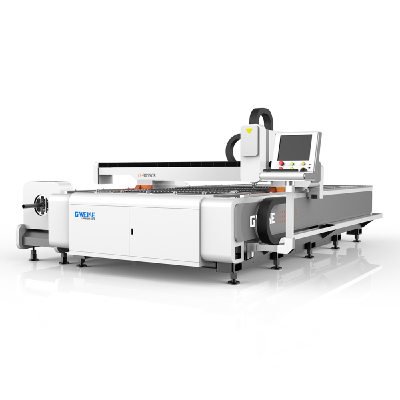

CNC pipe plate dual-use fiber laser cutting machine

CNC pipe plate dual-use fiber laser cutting machine

  • Min.Order Quantity: 1 Set
  • Supply Ability: 100 Sets per Month
  • Port: QINGDAO
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets

Chat Now!
| Factory
Experience:2014-07-01
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  38
  • Place of Origin:  China
  • Brand Name:  GWEIKE
  • Model Number:  LF3015CR
  • Weight: 6000.000 kg

The Third Generation Aviation Aluminum Gantry

It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.


Dual Use and Cost-saving

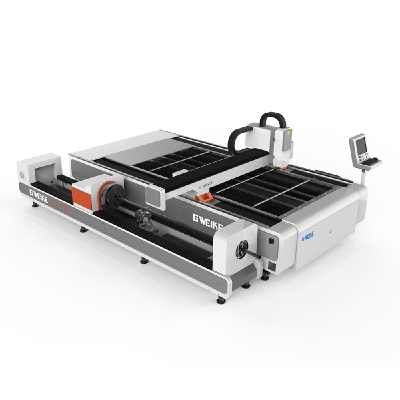

3015CR fiber laser cutting machine can not only cut metal plates, but also metal pipes. It has many uses and can save the space of more than 50%, which effectively improve productivity.

Clamp Design

It adopts an electric clamp design on both sides and it can modulate the center automatically. The diagonal adjustable range is 20-200mm.

Fractional Automatic Support Installation

It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting.

Without manual operation, it can focus automatically

  • Without manual focusing

    The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting.

  • Bigger adjustment range

    Adjustment range -10 mm~ 10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.

  • Long service life

    Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head.

Transmission and Precision

German Tech Quality

G·WEIKE fiber laser cutting machine is equipped with German Atlanta rack, Japanese Yaskawa motor and German Neugart reducer. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G. The working life is up to more than 10 years.



  • Size:  38
  • Place of Origin:  China
  • Brand Name:  GWEIKE
  • Model Number:  LF3015CR
  • Weight: 6000.000 kg

Technical Parameters

Machine modelLF3015CR
Laser power1000W 2000W 3000W 4000W 6000W 8000W(Optional)
Dimensions4600*2450*1700mm
Working area3000mm x 1500mm
Repeat positioning accuracy±0.02mm
Maximum speed120m/min
Maximum acceleration1.5G
Specified voltage and frequency380V/50Hz/60Hz/60A
