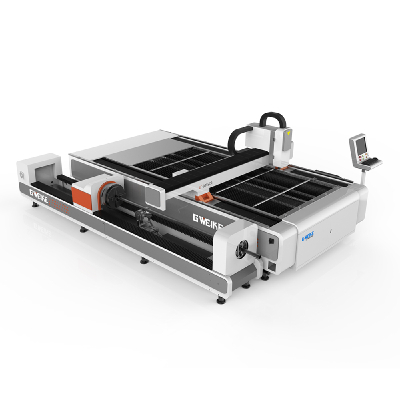

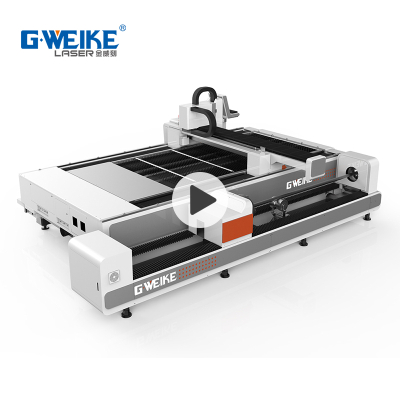

1000w 2000w 3000w 4000w Dual useTube and Plate Fiber Laser Cutting Machine

1000w 2000w 3000w 4000w Dual useTube and Plate Fiber Laser Cutting Machine

  • FOB Price:US $70,000 -180,000 / Set (Only for reference) | Get Latest Price
  • Min.Order Quantity: 1 Set
  • Supply Ability: 100 Sets per Month
  • Port: Qingdao
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Other
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2014-07-01
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  Shandong China
  • Brand Name:  GWEIKE
  • Model Number:  LF3015CR

1000w 2000w 3000w 4000w Dual useTube and Plate Fiber Laser Cutting Machine

3rd Generation Aviation Aluminum Gantry





It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

Dual Use and Cost-saving

3015CR fiber laser cutting machine can not only cut metal plates, but also metal pipes. It has many uses and can save the space of more than 50%, which effectively improve productivity.

Clamp Design

It adopts an electric clamp design on both sides and it can modulate the center automatically. The diagonal adjustable range is 20-200mm.

Fractional Automatic Support Installation

It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting.

Without manual operation, it can focus automatically



  • Without manual focusing

    The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting.

  • Bigger adjustment range

    Adjustment range -10 mm~ 10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.

  • Long service life

    Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head

The Segmented Rectangular Tube Welded Bed

The internal structure of the bed adopts the aircraft metal honeycomb structure, which is welded by a number of rectangular tubes. Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide rail so as to effectively avoid the deformation of the bed.

  •   High strength, stability, tensile strength, ensuring 20 years of use without distortion;

  •   Thickness of rectangular pipe wall is 10mm,and weights 4500 kg.

Transmission and Precision

German Tech Quality

G·WEIKE fiber laser cutting machine is equipped with German Atlanta rack, Japanese Yaskawa motor and German Neugart reducer. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G. The working life is up to more than 10 years.

Industry application:

Since sheet and pipe integrated design, Industry adaptability of LF3015CR has been greatly enhanced, including petroleum and pipe material, fitness equipment and other pipe material mainly mechanical processing, automotive manufacturing, machine cabinet and other board materials mainly mechanical processing, etc.
Specially used for cutting 0.5-5mm carbon steel sheets (pipes), 0.5-2.5mm stainless steel sheets, galvanized steel(pipes), electrolytic zinc-coated steel sheet(pipes), silicon steel(pipes) and other kinds of thin metal sheets and pipes. Range of pipe diameters: 20-220mm.

Company

Jinan G.Weike Science & Technology Co., Ltd is established in July 2004. It is a modern enterprise in combination of

 researching, producing and selling on Optics, Mechanics and Electronics. Our company is one of the biggest

manufactures for small and medium laser equipments, recently the company owns 150 employees, more than 500 square

meters of researching and office space, more than 26000 square meters of manufacturing space. The total sales quality

is more than 10000 sets since the company established and along with the production scale expanding, the annual sales

 quality has achieved more than 3000 sets now. Our products are sold to USA, Canada, Australia, Europe, South east

 Asia, Africa etc. more than 80 countries and areas, and supply OEM service for more than 10 manufactures.


Our Service


  • Warranty and service

Three years warranty for machine. English technical to door service.English manual and Video CD for

machine using and maintenance.We offer free training in our factory, welcome to visit and learn more

about our machines.

Free accessories  :Software ,manual, book, cd videos, USBcontrol

  • Pre-sales service
    A.   Free sample making
           For free sample making/testing, please send your samples or products CAD Graphics to our company in

           China. Try before you buy.

      B.   Progressing Solution Design
             According to customer’s product processing requirement, we can design the unique solution that supports

             higher manufacturing efficiency and better processing quality for customer.

  • 2.After-sales service:
    Training to install(3options):
    A. We will supply the machine with training video and user's manual in English for installing, operation,

         maintenance and trouble-shooting, and shall give technical guide by e-mail, fax, telephone/MSN/ICQ and

         so on, when you meet some problems of installation, using or adjusting.
    B. You can come to our factory for training. Gweike will offer professional guide. Direct and effective face-to-face

         training. Here we have assembled equipments, all sorts of tools and testing facility,we will also provide

         accomadation during training period. Training Time: 1-10 working days.

 CONTACT INFO


 WeChat: D17615871071
 Tel/WhatsApp/Skype: 86 17615871071
 E-mail: iris@wklaser.com
 Address: C-504, Silver Lotus Building, High-Tech Zone Jinan Shandong China
 Postcode:250101






  • Place of Origin:  Shandong China
  • Brand Name:  GWEIKE
  • Model Number:  LF3015CR

Technical Parameters

Machine modelLF3015CR
Laser power1000W 2000W 3000W 4000W 6000W 8000W(Optional)
Dimensions4600*2450*1700mm
Working area3000mm x 1500mm
Repeat positioning accuracy±0.02mm
Maximum speed120m/min
Maximum acceleration1.5G
Specified voltage and frequency380V/50Hz/60Hz/60A
